OUTDOOR DOOH

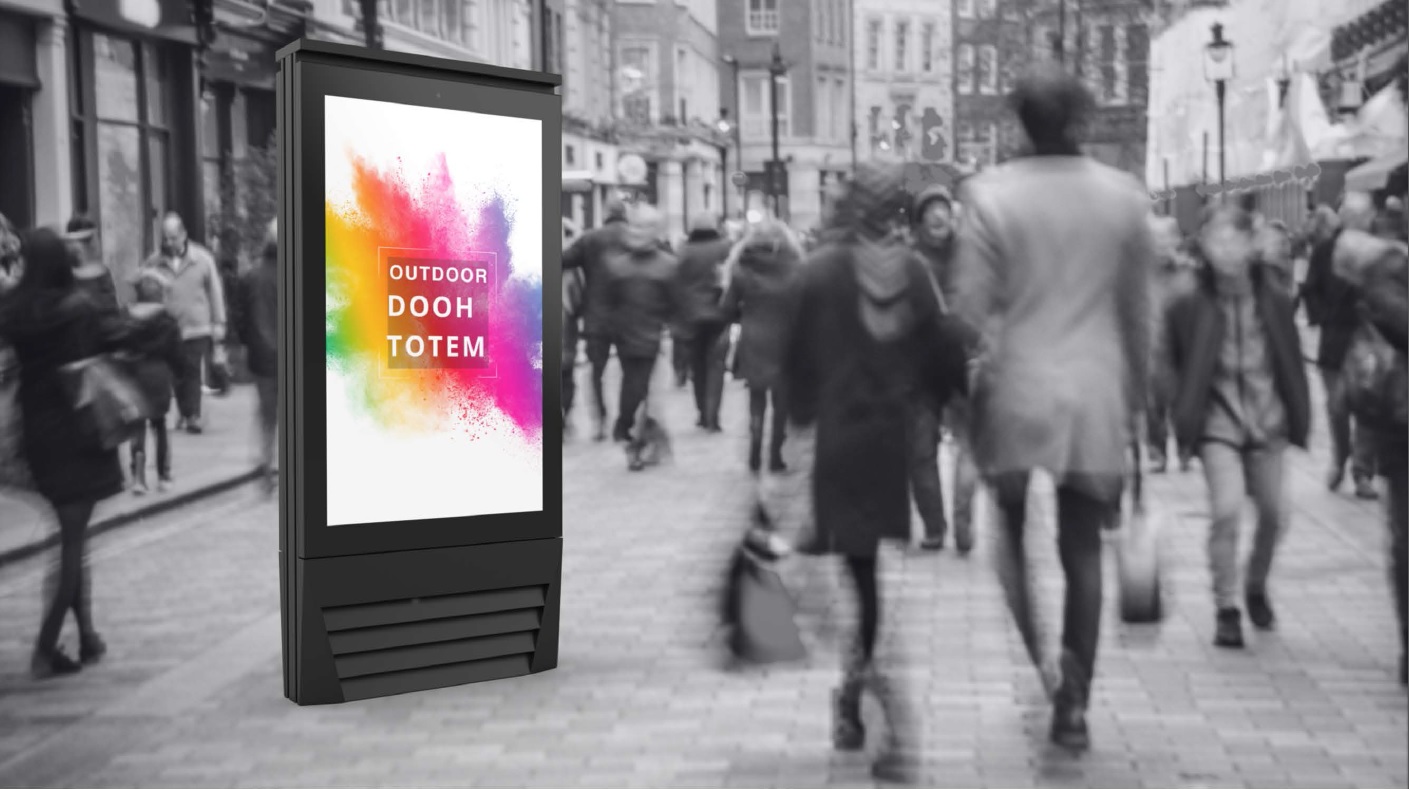

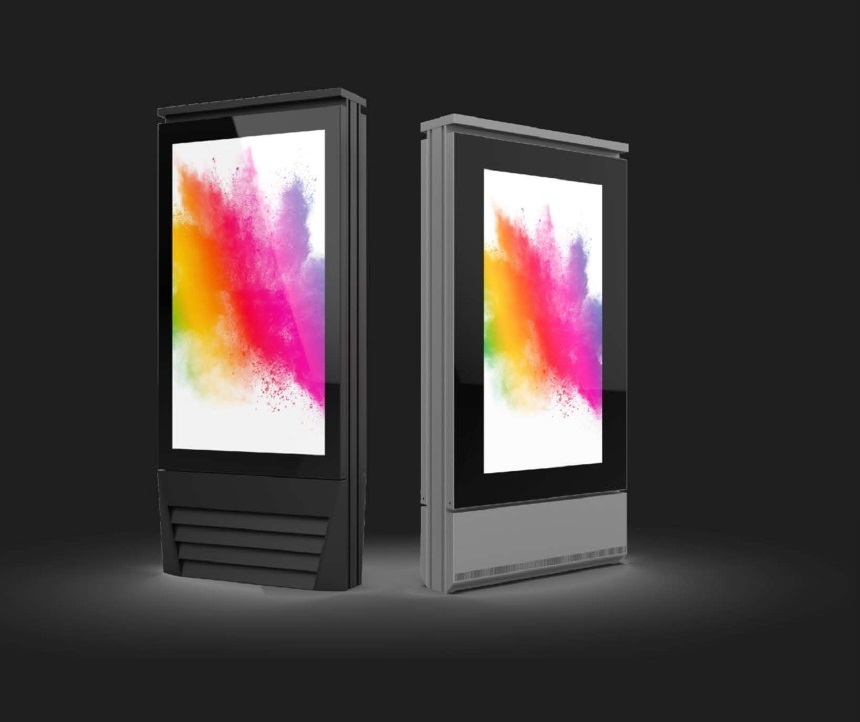

DIGITAL LED TOTEM

Eye level outdoor LED totem with IP 55 aluminum profile enclosure, laminated anti reflective glass protected the screen. digital totem integrated with smart weather management and auto brightness sensor.

Digital totem is more than a screen + a box

A digital totem is not just a screen enclosed in metal – it’s a carefully engineered solution designed to perform reliably in the most demanding outdoor environments.

Enhanced Visual Quality

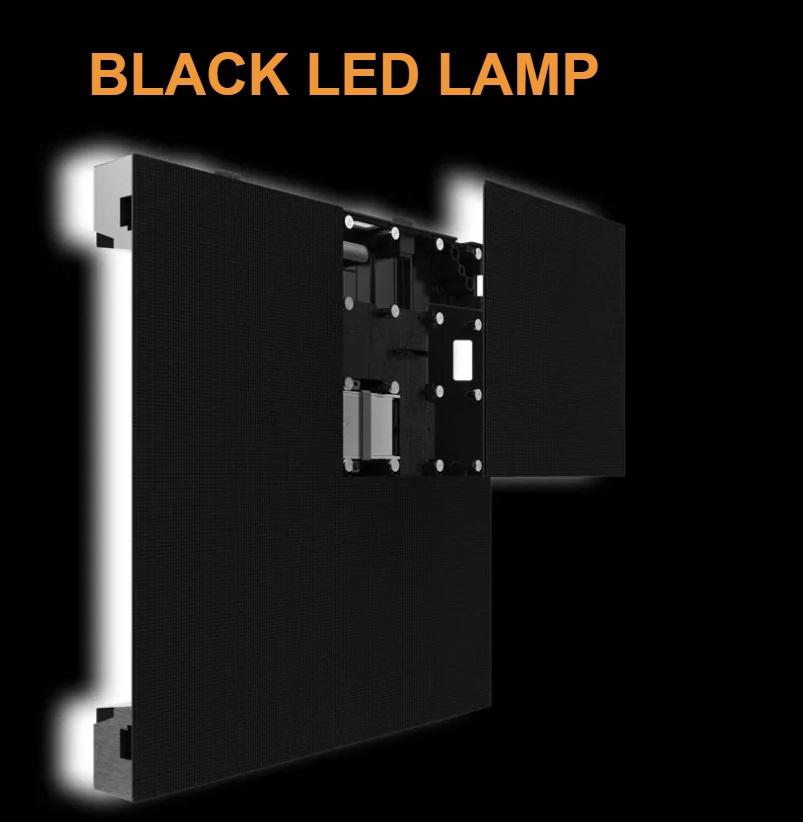

With black LED technology, our displays deliver superior contrast, vibrant colors, and reduced glare, ensuring exceptional image clarity and visual impact, even in outdoor or high-brightness environments.

Robust Durability

Thanks to GOB (Glue on Board) technology, our LED displays are highly resistant to dust, moisture, and physical impact. This ensures long-lasting performance, making them suitable for demanding conditions.

Efficient and Reliable

Leveraging common cathode technology, our LED displays achieve lower power consumption, reduced heat generation, and improved stability, ensuring consistent performance while optimizing energy efficiency.

LED features

High contrast Ratios, high brightness:

MIP 1.9 LED (Micro LED in Package) technology ensures high brightness (3500nits), superior contrast, and excellent color consistency

All-Aluminum Casing:

Constructed with an all-aluminum body without plastic parts, enhancing durability and stability under high temperatures.

Low maintenance cost:

Supporting single LED repair, significantly reducing maintenance costs.

4-layer PCB:

Features an optimized four-layer PCB design that enhances heat dissipation and overall stability.

Modern Design

Our design fully considers the unique climatic conditions of coastal city, ensuring the totem operates stably under natural conditions such as high temperature, rainfall, and humidity.

Robust Aluminum profile with outdoor powder coating

The casing material is selected for its corrosion resistance and rust-proof properties, coupled with a waterproof design, to guarantee the long-term stability of the device.

Galvanize steel structure reinforcement

The inner structure is made by galvanize steel, the galvanizing is after welded and polishing to insure the structure anti corrosion.

SUNLIGHT READABLE

Anti-Reflection | UV Resistance | Anti- Vandalism

The glass consists of two 4mm tempered layers laminated together, up to level IK 10, each side treated with anti-reflective processing for clear visibility even in strong sunlight. The black edges are silk-screen printed at high temperatures. Logo printing available on free of charge.

* Noted: Anti-reflective glass can effectively reduce the reflectivity of the glass, ensuring that advertising content remains clearly visible under sunlight. However, it cannot completely eliminate reflections.

Highly Physical Secure

Mechanical locking system ,Reliable stainless steel security locking system with water proof treatment, and only open with a special key.

Auto Brightness Control

Includes a light sensor that automatically adjusts screen brightness based on ambient light, ensuring the best visual experience under any lighting conditions. Less light pollution and energy efficiency.

HEAT & HUMIDITY MANAGEMENT

A group of high-efficiency and reliable quality fans, controlled by a temperature and humidity management system, fans will automatically activate to maintain normal temperature and humidity levels inside the totem, effectively protecting the screen.
